Introduction

This page will walk through the steps to go from the raw 10x sequencing fastq files to a count matrix and demuxlet assignment of droplets to individuals. This involves running a Snakemake pipeline located in the code directory and some code in R. The end product are seurat objects containing the raw count matrices and assignment to one of the three individuals and two treatment groups (strain or unstrain) for each of the two 10x GEM wells used in the sequencing experiment.

Run the Snakemake Pipeline after downloading necessary files and creating the conda environment (see README.txt)

1. Move the fastq files from all samples (these are output files from 10x runs, containing both forward and reverse sequences) into the folder code/single_cell_preprocessing/fastq/. Undetermined data files are not required.

2. Modify the code/single_cell_preprocessing/Pipeline/cluster_solo.json file to correspond to the computing cluster you are working with.

3. Unzip the whitelist file in the code/single_cell_preprocessing/ directory.

4. Install the conda working by running “conda env create –file environment.yaml”

5. Run “source activate dropseq2” to activate the conda environment.

6. Run the file “submit.sh”.

Load files into R

After running the pipeline, two directories will be created corresponding to the two 10x GEM well involved in the sequencing experiment (“YG-AH-2S-ANT-1_S1_L008” and “YG-AH-2S-ANT-2_S2_L008”). These directories contain the demuxlet and STAR SOLO outputs for each 10x GEM well

Details about the individualXtreatment status of the samples that were pooled for each of the two GEM wells: ANT1: (NA19160 unstrained; NA18856 unstrained; NA18855 strained) ANT2: (NA19160 strained; NA18855 unstrained)

library(data.table)
library(Matrix)
library(Seurat)
library(readr)
library(stringr)
library(plyr)
library(dplyr)

Attaching package: 'dplyr'

The following objects are masked from 'package:plyr':

    arrange, count, desc, failwith, id, mutate, rename, summarise,
    summarize

The following objects are masked from 'package:data.table':

    between, first, last

The following objects are masked from 'package:stats':

    filter, lag

The following objects are masked from 'package:base':

    intersect, setdiff, setequal, union

## link to directories containing data files (count matrices)
proj_dir <- "code/single_cell_preprocessing/"
ANT1_dir <- paste0(proj_dir, "YG-AH-2S-ANT-1_S1_L008/")
ANT2_dir <- paste0(proj_dir, "YG-AH-2S-ANT-2_S2_L008/")

#read in data

##Gene Output from STARSOLO
#ANT1
demuxlet1 <- fread(paste0(ANT1_dir, "demuxlet.best", sep = ""))
count_data1 <- readMM(paste0(ANT1_dir, "Gene/filtered/matrix.mtx"))
genes1 <- read_tsv(paste0(ANT1_dir, "Gene/filtered/genes.tsv"), col_names = F)

Parsed with column specification:
cols(
  X1 = col_character(),
  X2 = col_character()
)

barcodes1 <- as.data.frame(read_tsv(paste0(ANT1_dir, "Gene/filtered/barcodes.tsv"), col_names = F))

Parsed with column specification:
cols(
  X1 = col_character()
)

#ANT2
demuxlet2 <- fread(paste0(ANT2_dir, "demuxlet.best", sep = ""))
count_data2 <- readMM(paste0(ANT2_dir, "Gene/filtered/matrix.mtx"))
genes2 <- read_tsv(paste0(ANT2_dir, "Gene/filtered/genes.tsv"), col_names = F)

Parsed with column specification:
cols(
  X1 = col_character(),
  X2 = col_character()
)

barcodes2 <- as.data.frame(read_tsv(paste0(ANT2_dir, "Gene/filtered/barcodes.tsv"), col_names = F))

Parsed with column specification:
cols(
  X1 = col_character()
)

Based on the demuxlet output, assign label for barcodes based on “BEST” output and filter for “SNG-” barcodes

#this function returns a dataframe with two columns, one corresponding to the barcodes and one corresponding to the label given by demuxlet
return_singlet_label <- function(barcodes, demuxlet.out){
  labels <- demuxlet.out$BEST[match(unlist(barcodes), demuxlet.out$BARCODE)]
  return(cbind(barcodes, labels))
}

barcodes1_labeled <- return_singlet_label(barcodes1, demuxlet1)
barcodes2_labeled <- return_singlet_label(barcodes2, demuxlet2)

#table of singlets/multiplets in the filtered data based on demuxlet
table(barcodes1_labeled$labels)

DBL-NA18855-NA18856-0.500 DBL-NA19160-NA18855-0.500
                       13                         6
DBL-NA19160-NA18856-0.500               SNG-NA18855
                        7                       411
              SNG-NA18856               SNG-NA19160
                      452                       260

table(barcodes2_labeled$labels)

DBL-NA18855-NA18856-0.500 DBL-NA18855-NA19160-0.500
                       20                      2719
DBL-NA18856-NA18855-0.500 DBL-NA19160-NA18855-0.500
                        4                      5650
DBL-NA19160-NA18856-0.500               SNG-NA18855
                       22                      4990
              SNG-NA19160
                     1506

## filter for droplets in the count data that are singlets (remove multiplets)
#ANT1
demuxlet_single1 <- demuxlet1 %>%
     dplyr::filter(grepl("SNG-", BEST))
singlets_index1 <- unlist(lapply(barcodes1_labeled$X1,"%in%", table = demuxlet_single1$BARCODE), use.names = F) #get index of barcodes that are singlets
barcodes_singlets1 <- barcodes1_labeled[singlets_index1,] #use index to subset matrix + barcode names
count_data_singlets1 <- count_data1[,singlets_index1]

#ANT2
demuxlet_single2 <- demuxlet2 %>%
     dplyr::filter(grepl("SNG-", BEST))
singlets_index2 <- unlist(lapply(barcodes2_labeled$X1,"%in%", table = demuxlet_single2$BARCODE), use.names = F) #get index of barcodes that are singlets
barcodes_singlets2 <- barcodes2_labeled[singlets_index2,] #use index to subset matrix + barcode names
count_data_singlets2 <- count_data2[,singlets_index2]

Create Seurat object for each dataset (for singlet barcodes) and add metadata in the form of singlet identity for each barcode.

#Change labels to reflect strain/unstrain based on prior knowledge of which strainXindividual combinations went into each pool

strainIndlabels1 <- revalue(barcodes_singlets1$labels,
                            c("SNG-NA18856"= "NA18856_Unstrain",
                              "SNG-NA18855" = "NA18855_Strain",
                              "SNG-NA19160" = "NA19160_Unstrain"))

strainIndlabels2 <- revalue(barcodes_singlets2$labels,
                            c("SNG-NA18855" = "NA18855_Unstrain",
                              "SNG-NA19160" = "NA19160_Strain"))


rownames(count_data_singlets1) <- genes1$X2
colnames(count_data_singlets1) <- barcodes_singlets1$X1

ANT1_seurat <- CreateSeuratObject(counts = count_data_singlets1, project = "ANT1") %>%
  AddMetaData(strainIndlabels1, col.name = "labels")

Warning: Non-unique features (rownames) present in the input matrix, making
unique

rownames(count_data_singlets2) <- genes2$X2
colnames(count_data_singlets2) <- barcodes_singlets2$X1

ANT2_seurat <- CreateSeuratObject(counts = count_data_singlets2, project = "ANT2") %>%
  AddMetaData(strainIndlabels2, col.name = "labels")

Warning: Non-unique features (rownames) present in the input matrix, making
unique

Merge the two seurat objects (without any data integration) and filter out unwanted cells based on QC metrics

This merged dataset is used to fit the topic model in a later file. Based on the clustering results, which show that the cells from the same individual from different 10x GEM well overlap, there does not seem to be a large contribution of technical effects from 10x GEM well on gene expression.

ANT1.2 <- merge(x = ANT1_seurat,
                   y = ANT2_seurat,
                   add.cell.ids = c("ANT1", "ANT2"),
                   merge.data = F,
                   project = "OAStrain")

#compute the percentage of reads coming from mitochondrial genes for each droplet
ANT1.2[["percent.mt"]] <- PercentageFeatureSet(ANT1.2, pattern = "^MT-")

#visualize QC metrics as violin plot

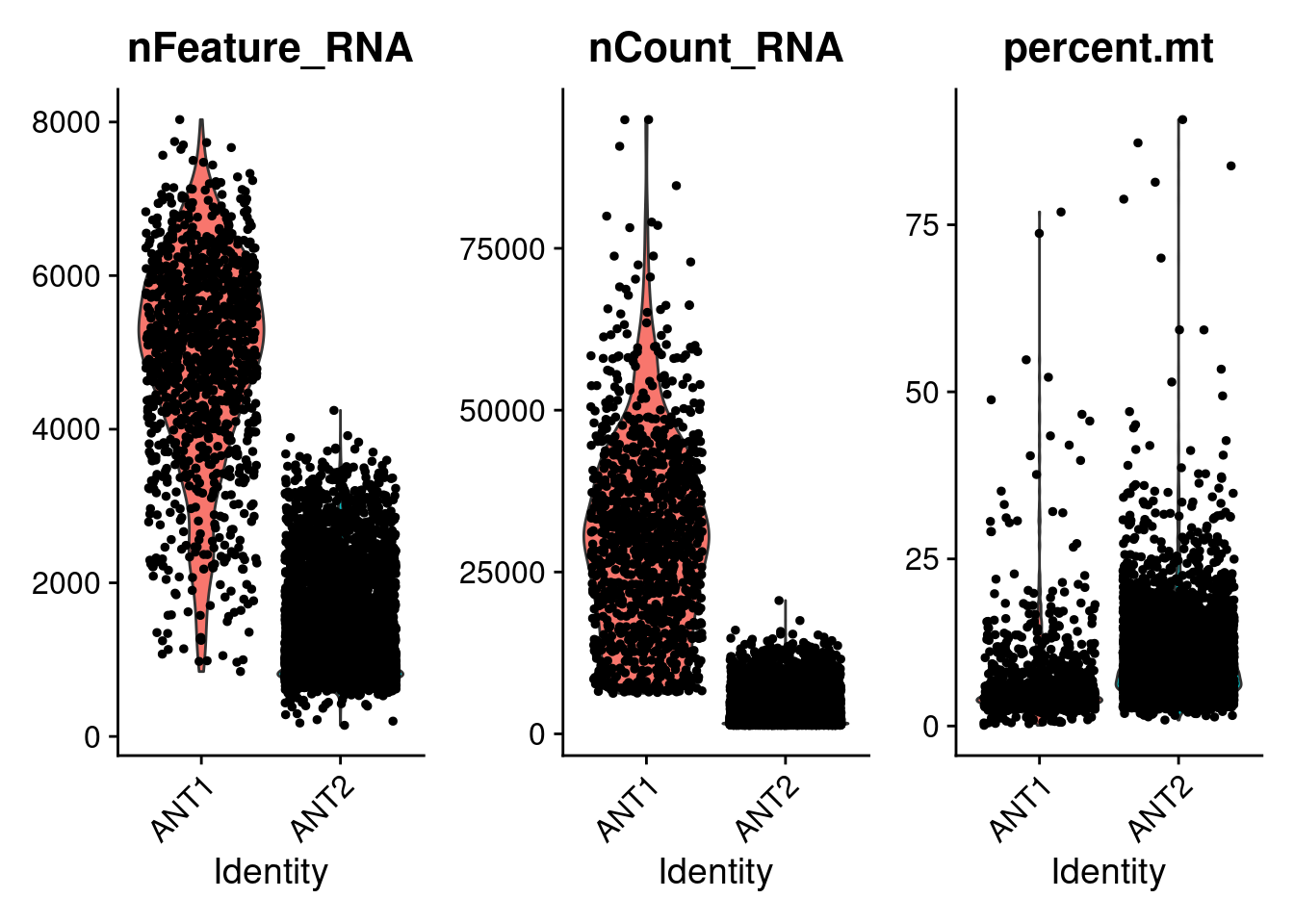

VlnPlot(ANT1.2, features = c("nFeature_RNA", "nCount_RNA", "percent.mt"), ncol = 3)

Past versions of merge-1.png

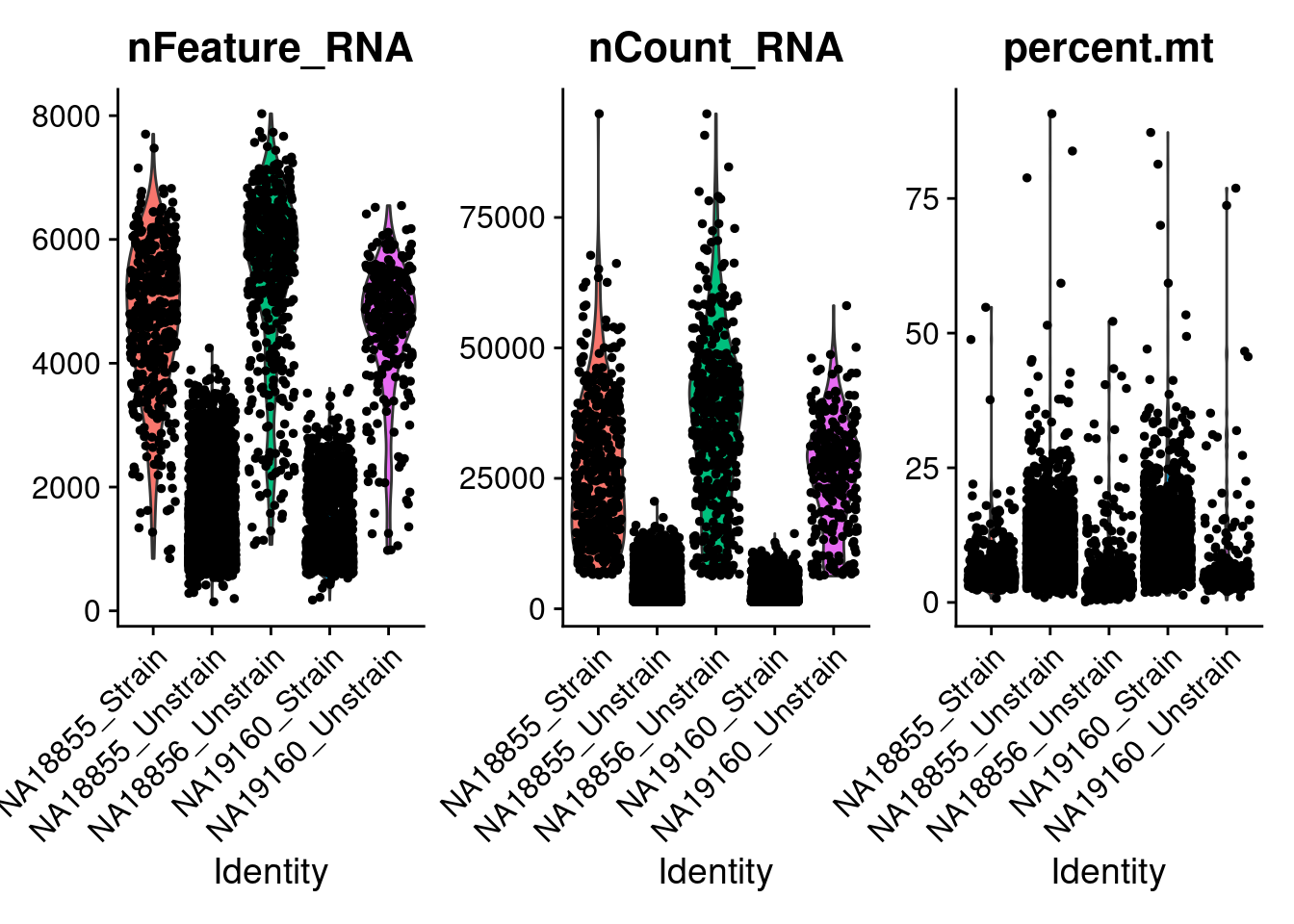

VlnPlot(ANT1.2, features = c("nFeature_RNA", "nCount_RNA", "percent.mt"), ncol = 3, group.by = "labels")

Past versions of merge-2.png

# FeatureScatter is typically used to visualize feature-feature relationships, but can be used
# for anything calculated by the object, i.e. columns in object metadata, PC scores etc.
plot1 <- FeatureScatter(ANT1.2, feature1 = "nCount_RNA", feature2 = "percent.mt")
plot2 <- FeatureScatter(ANT1.2, feature1 = "nCount_RNA", feature2 = "nFeature_RNA")

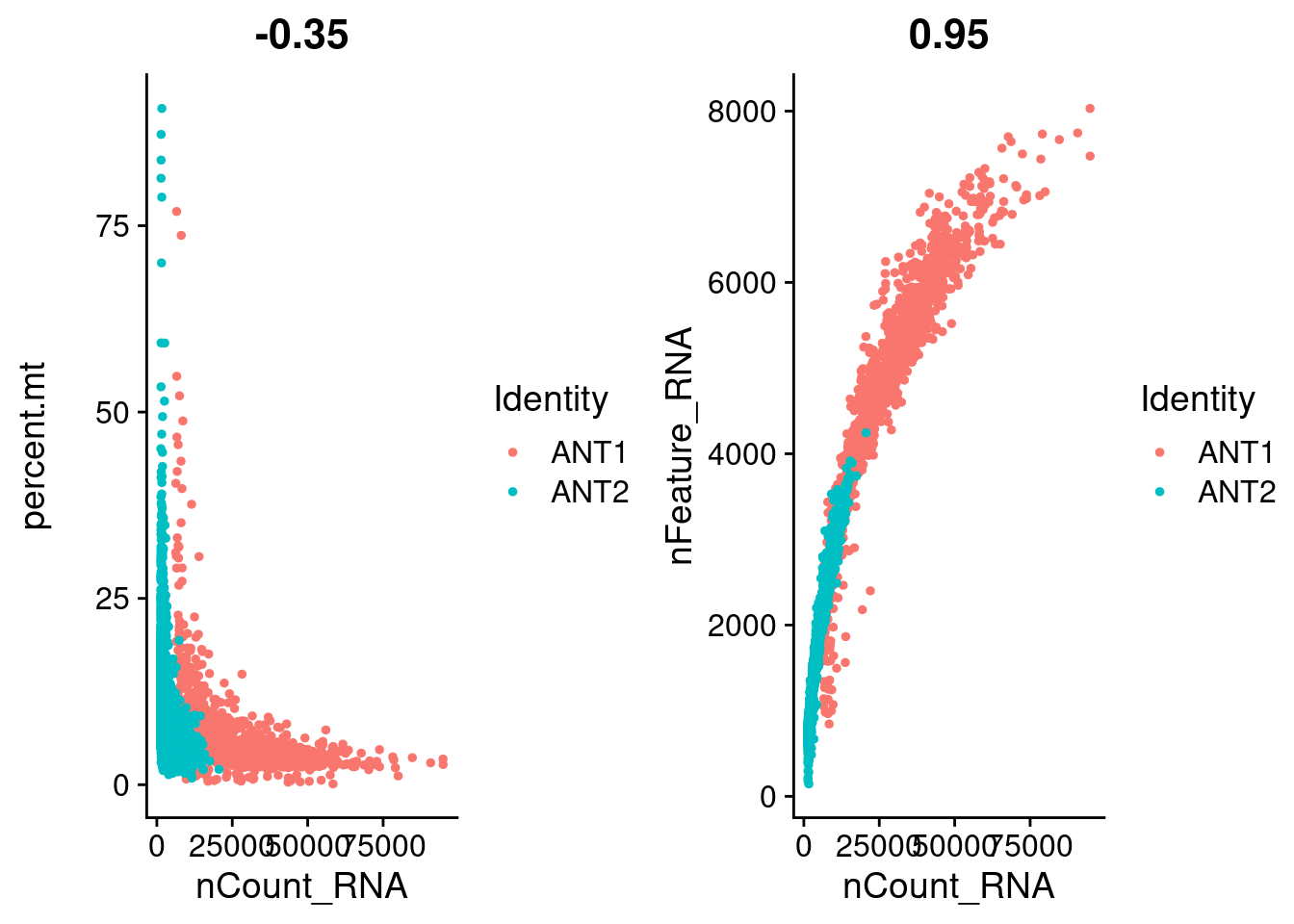

CombinePlots(plots = list(plot1, plot2))

Warning: CombinePlots is being deprecated. Plots should now be combined
using the patchwork system.

Past versions of merge-3.png

#Filter barcodes based on nFeatures and %MT
ANT1.2 <- subset(ANT1.2, subset = nFeature_RNA > 2000 & percent.mt < 10)
table(ANT1.2$labels)

  NA18855_Strain NA18855_Unstrain NA18856_Unstrain   NA19160_Strain
             348              586              395              264
NA19160_Unstrain
             222

#Look at QC metrics after filtering

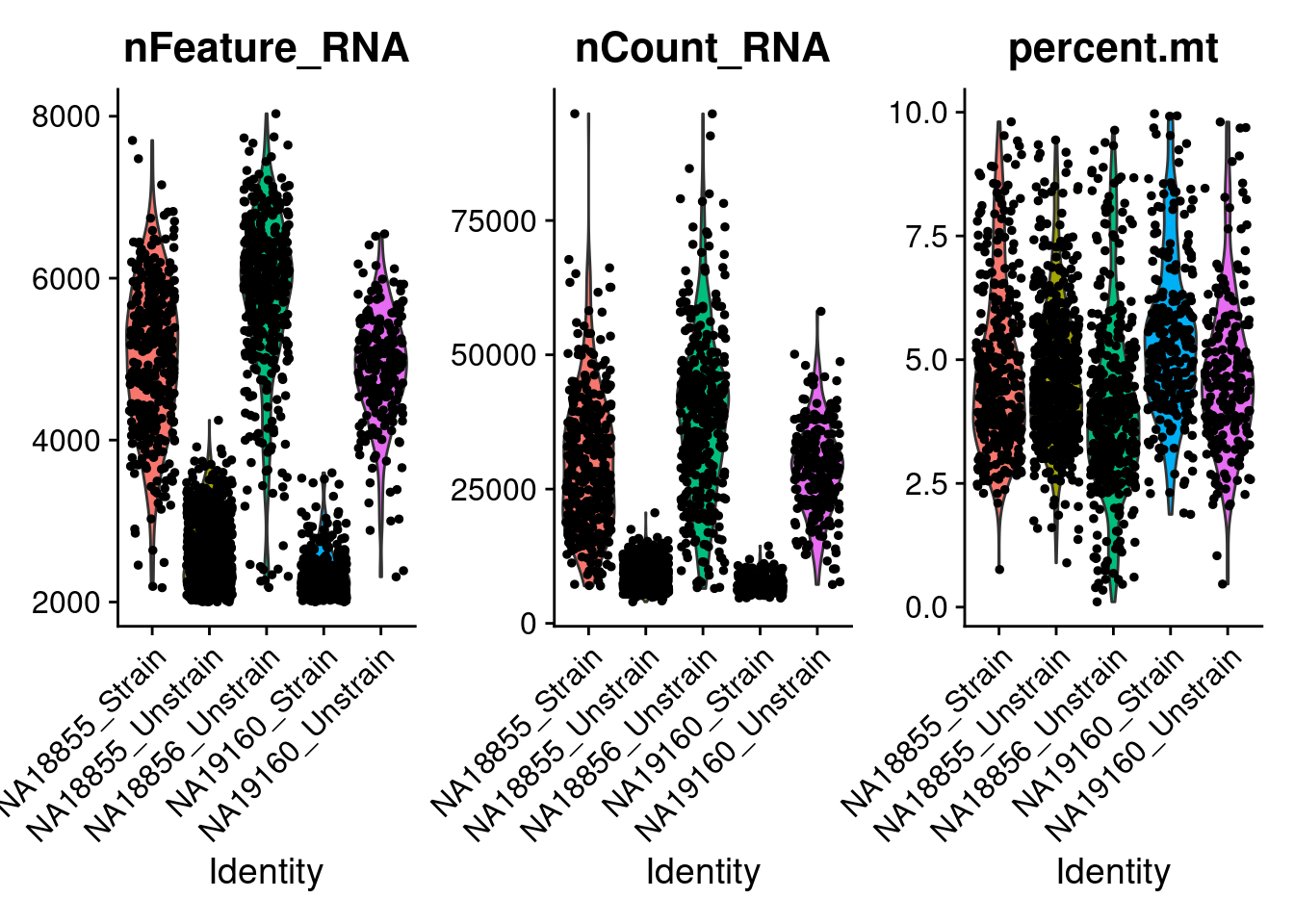

VlnPlot(ANT1.2, features = c("nFeature_RNA", "nCount_RNA", "percent.mt"), ncol = 3, group.by = "labels")

Past versions of merge-4.png

dim(ANT1.2)

[1] 33538  1815

# Look at how the samples cluster after merging without any integration methods applied
#normalize
ANT1.2 <- NormalizeData(ANT1.2, normalization.method = "LogNormalize", scale.factor = 10000)
#find variable features and run a PCA
ANT1.2 <- FindVariableFeatures(ANT1.2, selection.method = "vst", nfeatures = 2000)
ANT1.2 <- ScaleData(ANT1.2, verbose = FALSE)
nPC <- 100
ANT1.2 <- RunPCA(ANT1.2, features = VariableFeatures(object = ANT1.2), npcs = nPC)

PC_ 1
Positive:  VIM, TIMP3, INHBA, TPM1, MAP3K7CL, SPINT2, PDLIM3, SOX4, C12orf75, TUBA1A
       CCND2, CPE, RDH10, LZTS1, PMEPA1, LMO7, CDKN2B, TCAF1, MARCKSL1, UCHL1
       GSTO1, XRCC4, IGFL2, FN1, FSCN1, RAI14, STMN1, CTGF, JPT1, MYH9
Negative:  IFITM3, SAA1, SPON2, PDPN, TMEM141, PTGDS, DPP7, OTULINL, CDKN1C, TSPO
       PRLR, DCN, LUM, FKBP5, PNMT, GGT5, MMP23B, NUPR1, TMEM88, PLIN2
       SERPINF1, IQGAP2, ADAMTS2, SMOC2, APOD, GMPR, FAM213A, FMO5, TXNDC16, MME
PC_ 2
Positive:  RPS4Y1, SLC3A2, EIF1AY, FTH1, SERPINE1, PTGR1, DDIT3, EIF1B, FAM129A, SQSTM1
       DDX3Y, SPON2, MT1E, MGST1, CEBPB, BTG1, CLIC1, TRIB3, KCNG1, EZR
       DUSP1, CYSTM1, PRDX6, TSPO, IFRD1, IMPA2, MAGEH1, NFIL3, YWHAQ, BLVRB
Negative:  CHCHD2, MDK, MFAP4, PLAC9, OGN, COL15A1, B2M, SLC40A1, COL6A3, MEST
       SPON1, FIBIN, HLA-A, MXRA5, ACTA2, RIMS2, IGFBP3, KCTD12, PITX1, PRSS35
       CEMIP, GLIPR1, COL6A1, ADAM12, CCND2, SBF2-AS1, LURAP1L, FST, GNG11, CHN1
PC_ 3
Positive:  OGFRL1, SMOC2, AQP1, TMEM88, GPC3, SELENOP, PROCR, ODAPH, CLTB, PRDX6
       PLAC9, MEST, IGFBP7, PLA2G16, FLT1, SLIT3, ATRNL1, IGFBP2, TSPAN15, NEDD9
       PDZRN4, TMEM176B, HAPLN4, RGS4, SRPX, NSG1, COL4A4, AC078850.1, TMEM176A, TPD52L1
Negative:  MGST1, TGFBI, DDIT4, TRIB3, ZFAS1, FN1, SLC7A11, LGALS1, FTH1, SLFN5
       AP002884.1, TXNRD1, LIMS1, GCLM, COL6A3, C1R, CRABP2, TSC22D3, PHGDH, HLA-B
       ASNS, SLC12A8, DDIT3, NFIL3, NQO1, PMAIP1, TCEA1, GPR1, PCK2, AC040170.1
PC_ 4
Positive:  IL6ST, TIMP1, COL6A2, COL6A1, HOPX, FBLN2, NR2F1, LTBP1, COL15A1, F3
       SLC22A3, MME, MFAP4, MYL10, PDGFRA, SPON1, FLT1, TGM2, GAS7, TIMP3
       CLMP, EGFL6, GDF6, EGFLAM, HGF, VTN, TSPAN9, FGF7, LTBP2, COL11A1
Negative:  NRG1, MFAP5, ANOS1, ODAPH, PROCR, HTRA1, NKAIN4, AL356056.1, ANXA3, SPINT1
       ODC1, PRSS23, SMOC2, ANGPTL7, PDZRN4, TXNRD2, TUBA1A, ENAH, CDH6, NTRK2
       CLU, CDKN2A, DYNC1I1, SFRP1, PLAC9, PPME1, GADD45A, NCAM1, PLXDC1, GATM
PC_ 5
Positive:  CDK1, PCLAF, CENPM, UBE2C, RRM2, TOP2A, NUSAP1, PTTG1, TYMS, PBK
       BIRC5, CENPF, HMMR, SPC25, DEPDC1, CEP55, TUBA1B, FOXM1, SHCBP1, HMGB2
       ORC6, NCAPG, GINS2, TROAP, TK1, GTSE1, MAD2L1, TPX2, ANLN, KRT18
Negative:  FN1, FST, THBS2, WNT2, CXCL14, LOX, FILIP1L, NEAT1, RPRML, RAMP1
       LUM, CKB, HTRA1, PLXDC1, TSPAN13, CCND2, FAP, COL6A2, IFI16, PLXDC2
       PSPN, EGFL6, COMP, TDO2, RCN3, HSPB6, RPS4Y1, CD55, GPC4, IGFL3

#Run clustering and UMAP
num_PCs <- 50
ANT1.2 <- FindNeighbors(ANT1.2, dims = 1:num_PCs)

Computing nearest neighbor graph

Computing SNN

ANT1.2 <- FindClusters(ANT1.2, resolution = 0.5)

Modularity Optimizer version 1.3.0 by Ludo Waltman and Nees Jan van Eck

Number of nodes: 1815
Number of edges: 85550

Running Louvain algorithm...
Maximum modularity in 10 random starts: 0.8146
Number of communities: 7
Elapsed time: 0 seconds

#Run UMAP
ANT1.2 <- RunUMAP(ANT1.2, dims = 1:num_PCs)

Warning: The default method for RunUMAP has changed from calling Python UMAP via reticulate to the R-native UWOT using the cosine metric
To use Python UMAP via reticulate, set umap.method to 'umap-learn' and metric to 'correlation'
This message will be shown once per session

09:58:57 UMAP embedding parameters a = 0.9922 b = 1.112

09:58:57 Read 1815 rows and found 50 numeric columns

09:58:57 Using Annoy for neighbor search, n_neighbors = 30

09:58:57 Building Annoy index with metric = cosine, n_trees = 50

0%   10   20   30   40   50   60   70   80   90   100%

[----|----|----|----|----|----|----|----|----|----|

**************************************************|
09:58:58 Writing NN index file to temp file /tmp/RtmpXd3o0f/file1613975457851
09:58:58 Searching Annoy index using 1 thread, search_k = 3000
09:58:58 Annoy recall = 100%
09:58:58 Commencing smooth kNN distance calibration using 1 thread
09:58:59 Initializing from normalized Laplacian + noise
09:58:59 Commencing optimization for 500 epochs, with 73932 positive edges
09:59:05 Optimization finished

p1 <- DimPlot(ANT1.2, reduction = "umap")
p2 <- DimPlot(ANT1.2, reduction = "umap", group.by = "orig.ident")
p3 <- DimPlot(ANT1.2, reduction = "umap", group.by = "labels")
p1

Past versions of merge-5.png

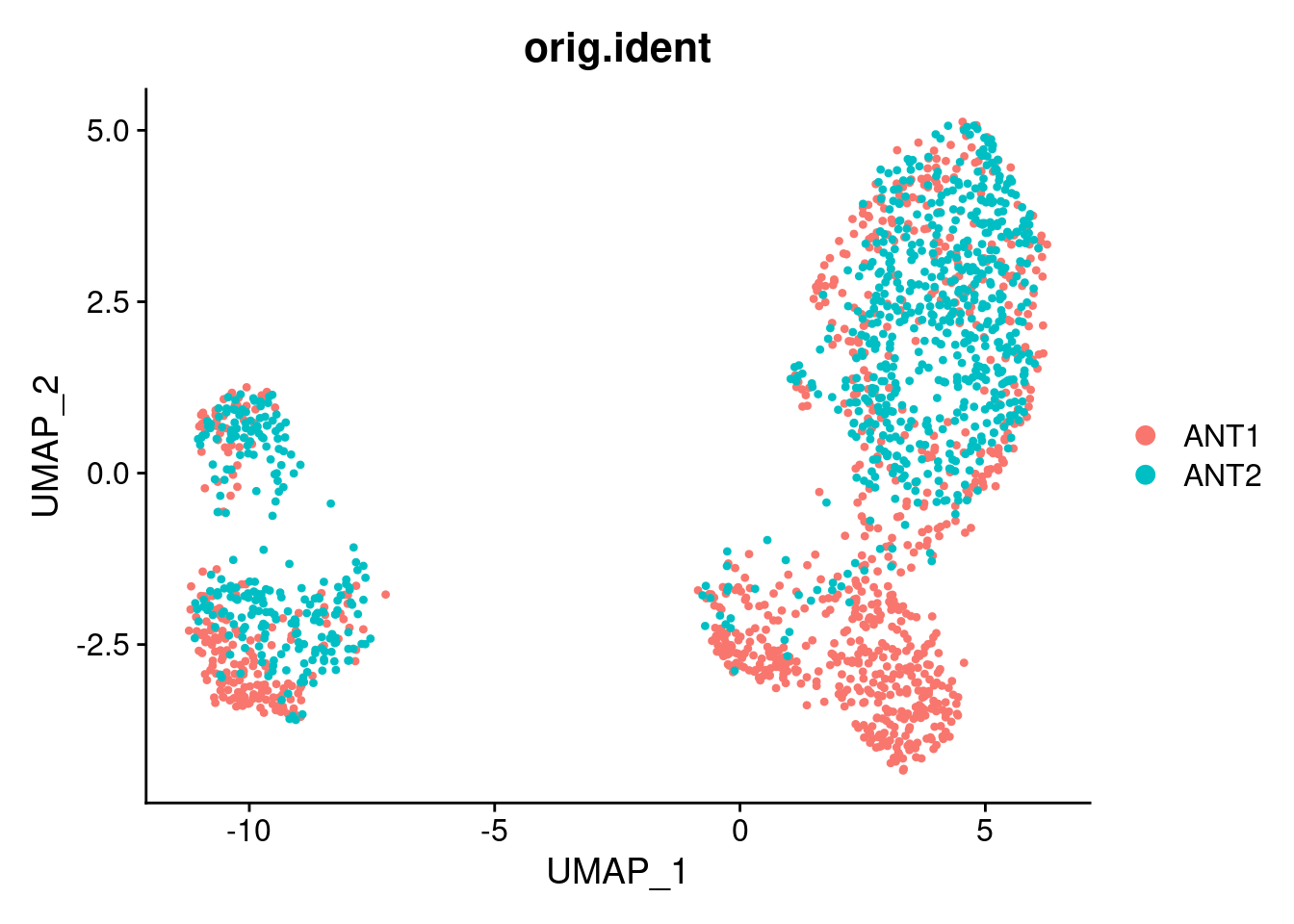

p2

Past versions of merge-6.png

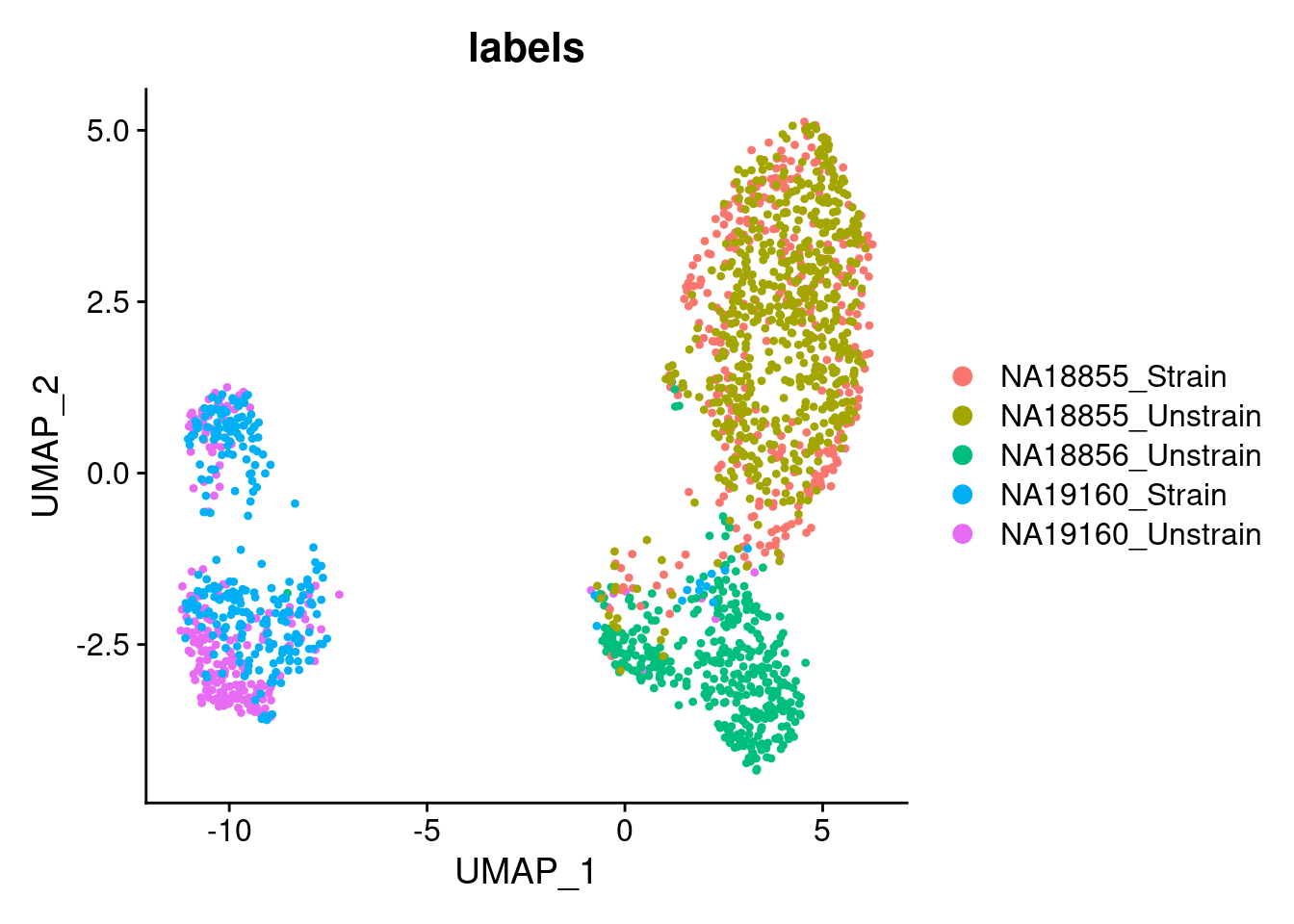

p3

Past versions of merge-7.png

Save Seurat objects

saveRDS(ANT1.2, "data/ANT1_2.rds")

Session information

sessionInfo()

R version 3.6.1 (2019-07-05)
Platform: x86_64-pc-linux-gnu (64-bit)
Running under: Scientific Linux 7.4 (Nitrogen)

Matrix products: default
BLAS/LAPACK: /software/openblas-0.2.19-el7-x86_64/lib/libopenblas_haswellp-r0.2.19.so

locale:
 [1] LC_CTYPE=en_US.UTF-8       LC_NUMERIC=C
 [3] LC_TIME=en_US.UTF-8        LC_COLLATE=en_US.UTF-8
 [5] LC_MONETARY=en_US.UTF-8    LC_MESSAGES=en_US.UTF-8
 [7] LC_PAPER=en_US.UTF-8       LC_NAME=C
 [9] LC_ADDRESS=C               LC_TELEPHONE=C
[11] LC_MEASUREMENT=en_US.UTF-8 LC_IDENTIFICATION=C

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

other attached packages:
[1] dplyr_1.0.2       plyr_1.8.6        stringr_1.4.0     readr_1.3.1
[5] Seurat_3.2.3      Matrix_1.2-18     data.table_1.13.0

loaded via a namespace (and not attached):
  [1] Rtsne_0.15            colorspace_2.0-0      deldir_0.1-23
  [4] ellipsis_0.3.1        ggridges_0.5.1        rprojroot_2.0.2
  [7] fs_1.3.1              spatstat.data_1.7-0   farver_2.0.3
 [10] leiden_0.3.1          listenv_0.8.0         npsurv_0.4-0
 [13] ggrepel_0.9.0         RSpectra_0.15-0       codetools_0.2-16
 [16] splines_3.6.1         lsei_1.2-0            knitr_1.23
 [19] polyclip_1.10-0       jsonlite_1.7.2        workflowr_1.6.2
 [22] ica_1.0-2             cluster_2.1.0         png_0.1-7
 [25] uwot_0.1.10           shiny_1.3.2           sctransform_0.3.2
 [28] compiler_3.6.1        httr_1.4.2            lazyeval_0.2.2
 [31] later_1.1.0.1         htmltools_0.5.0       tools_3.6.1
 [34] rsvd_1.0.1            igraph_1.2.4.1        gtable_0.3.0
 [37] glue_1.4.2            RANN_2.6.1            reshape2_1.4.3
 [40] rappdirs_0.3.1        Rcpp_1.0.5            spatstat_1.64-1
 [43] scattermore_0.7       vctrs_0.3.6           gdata_2.18.0
 [46] nlme_3.1-140          lmtest_0.9-37         xfun_0.8
 [49] globals_0.12.5        mime_0.9              miniUI_0.1.1.1
 [52] lifecycle_0.2.0       irlba_2.3.3           gtools_3.8.1
 [55] goftest_1.2-2         future_1.18.0         MASS_7.3-52
 [58] zoo_1.8-8             scales_1.1.1          hms_0.5.3
 [61] promises_1.1.1        spatstat.utils_1.17-0 parallel_3.6.1
 [64] RColorBrewer_1.1-2    yaml_2.2.1            reticulate_1.16
 [67] pbapply_1.4-0         gridExtra_2.3         ggplot2_3.3.3
 [70] rpart_4.1-15          stringi_1.4.6         caTools_1.17.1.2
 [73] rlang_0.4.10          pkgconfig_2.0.3       matrixStats_0.57.0
 [76] bitops_1.0-6          evaluate_0.14         lattice_0.20-41
 [79] ROCR_1.0-7            purrr_0.3.4           tensor_1.5
 [82] labeling_0.4.2        patchwork_1.1.0       htmlwidgets_1.5.2
 [85] cowplot_1.1.0         tidyselect_1.1.0      RcppAnnoy_0.0.18
 [88] magrittr_2.0.1        R6_2.5.0              gplots_3.0.1.1
 [91] generics_0.0.2        withr_2.3.0           pillar_1.4.7
 [94] whisker_0.3-2         mgcv_1.8-28           fitdistrplus_1.0-14
 [97] survival_2.44-1.1     abind_1.4-5           tibble_3.0.4
[100] future.apply_1.3.0    crayon_1.3.4          KernSmooth_2.23-15
[103] plotly_4.9.2.1        rmarkdown_1.13        grid_3.6.1
[106] git2r_0.26.1          digest_0.6.27         xtable_1.8-4
[109] tidyr_1.1.2           httpuv_1.5.1          munsell_0.5.0
[112] viridisLite_0.3.0
